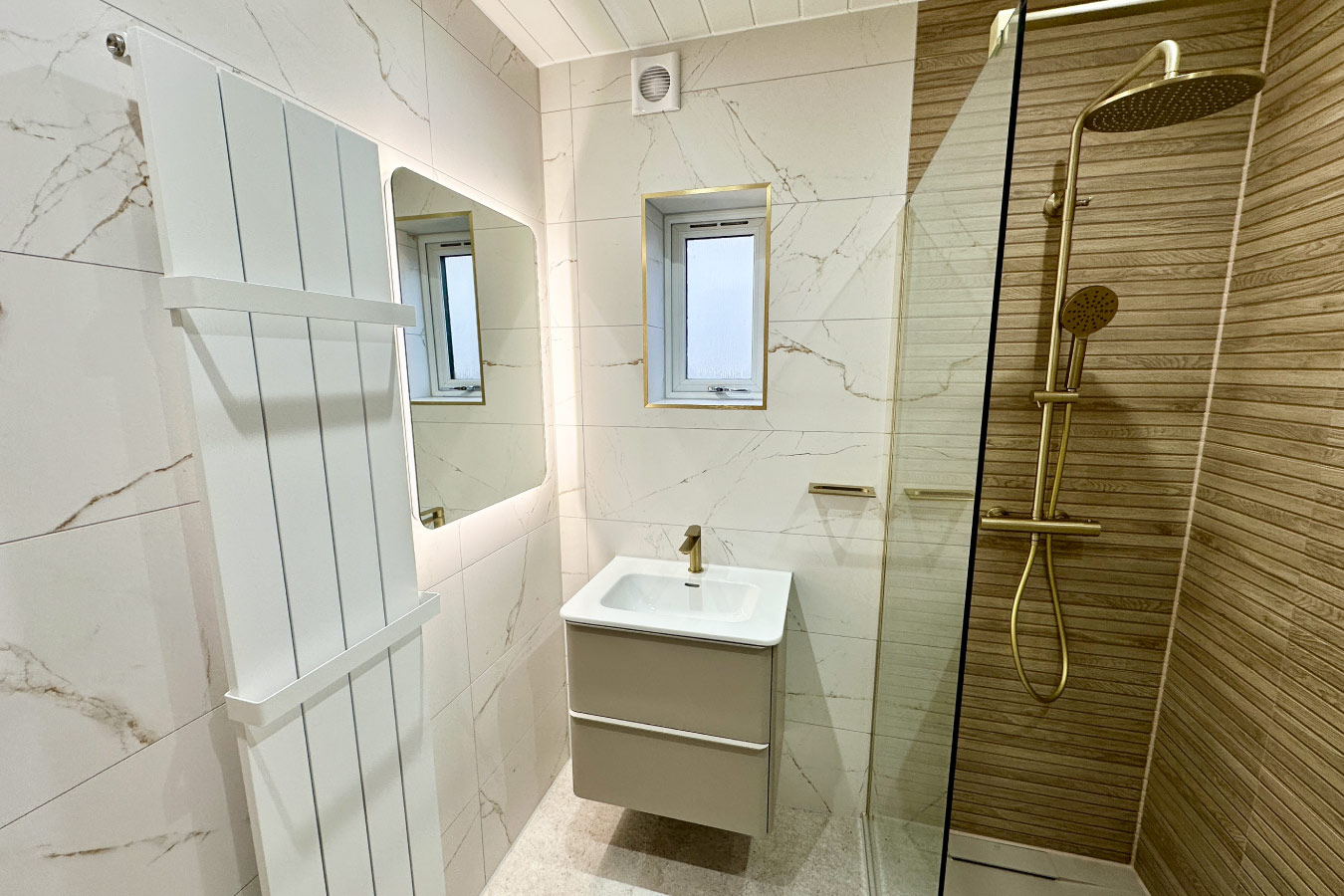

In a Kilmarnock home we split a rear family room into two: a shower room with brushed brass fittings, and a separate study and sitting room, all inside the existing footprint.
The owners wanted a ground floor shower room without building an extension. Their rear family room was a good size, so the plan was to split it in two: a shower room with a walk-in shower, WC and vanity, and a smaller study and sitting room next to it. Both rooms had to feel like proper rooms rather than something squeezed in, and the bathroom had a clear look in mind: brushed brass fittings, warm wood effect tiles in the shower and marble effect tiles everywhere else.
The building warrant drawings were already in place. We went through them with the owners and fine tuned the layout so the shower, WC and basin each had proper space. The shower room needed natural light and ventilation, so we cut a new opening in the brick gable wall, put in new lintels, fitted a frosted double glazed uPVC window with a top opening hopper and trickle vent, and made good the brickwork outside.
Inside, the old fireplace came out and the walls were made good. Our joiners built a floor to ceiling stud partition with sound insulation, then lifted the floor so the new 100mm waste could run underneath to the existing soil drainage. Our plumber first fixed the shower, basin and WC and extended the heating to two floor to ceiling radiators, with the pipes chased into the walls so nothing is on show. Our electrician added downlights, an extractor fan, an LED mirror, a pendant light in the small hallway, new sockets and a smoke detector.

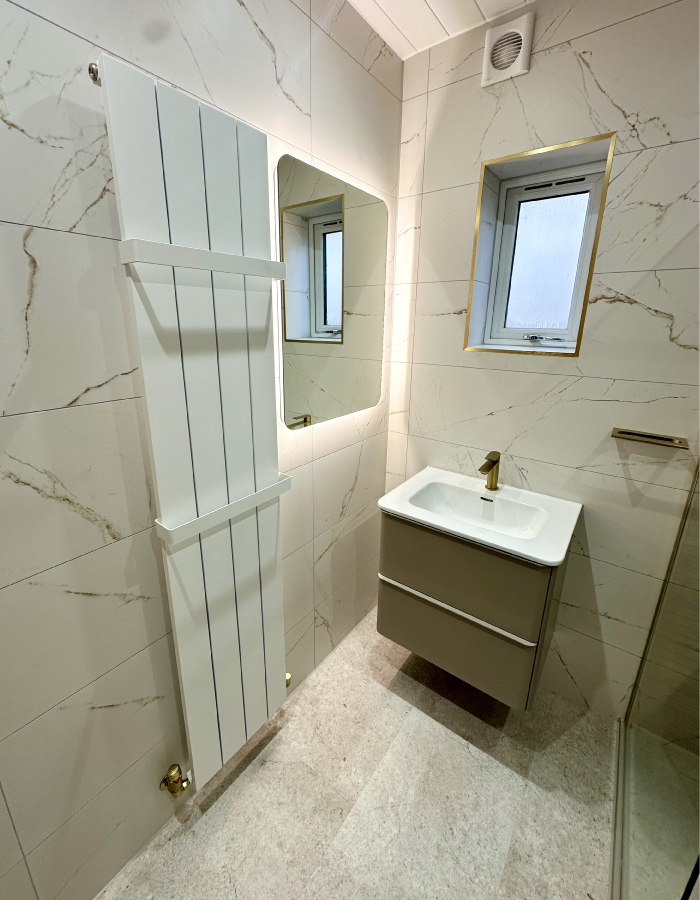

The finished shower room has a PVC ceiling on battens, large format marble effect wall tiles, wood effect tiles to the shower walls, a brushed brass trim around the window reveal and LVT flooring. It has a 1200 x 800 shower tray with brass framed glass panels, an exposed thermostatic shower in brushed brass, a wall hung vanity unit, a brass framed LED mirror and a comfort height WC. Three pre-finished oak doors were hung, a small storage cupboard was built outside the bathroom door, and the old study door was reused on the kitchen. Everything was tested and certified, and the building warrant completion paperwork was prepared at the end of the job, about four weeks after we started.
Project facts
Location Kilmarnock, East Ayrshire
Project Rear family room converted into a shower room and a separate study and sitting room
On site About four weeks, November 2025
Features New window opening in the brick gable, walk-in shower with brushed brass fittings, wood and marble effect tiles, LVT flooring, floor to ceiling radiators with hidden pipework, pre-finished oak doors
Building warrant drawings reviewed and the layout fine tuned with the owners
Fireplace removed and walls made good
New window opening cut in the brick gable wall, with new lintels
Frosted, double glazed white uPVC window with top hopper and trickle vent
Brickwork made good outside
Joinery
Floor to ceiling stud partition with sound insulation
Plywood sub floor preparation
PVC ceiling on timber battens

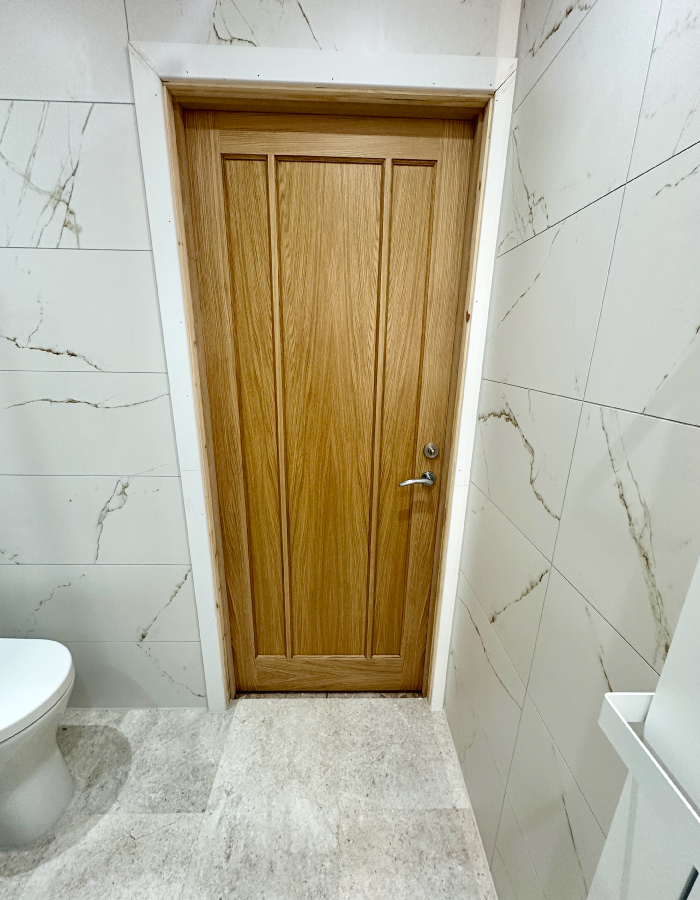

Three pre-finished oak doors, thumb turn lock to the shower room
Storage cupboard outside the shower room
Old door frame removed, study door moved to the kitchen
Plumbing and heating
Floor lifted to run a new 100mm waste to the existing soil drainage
Shower, basin and WC first and second fix
Heating extended to two floor to ceiling radiators

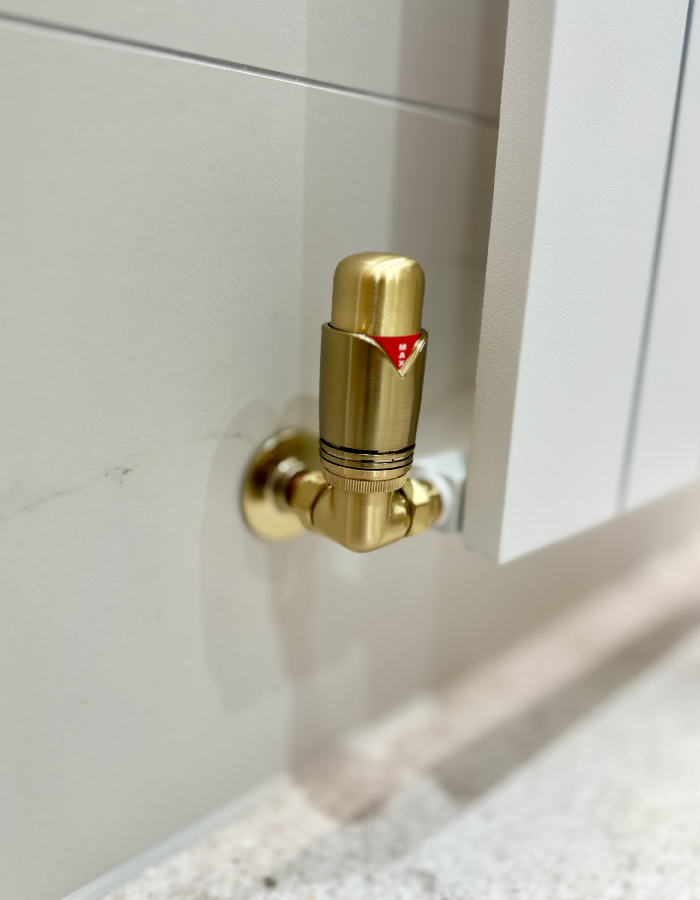

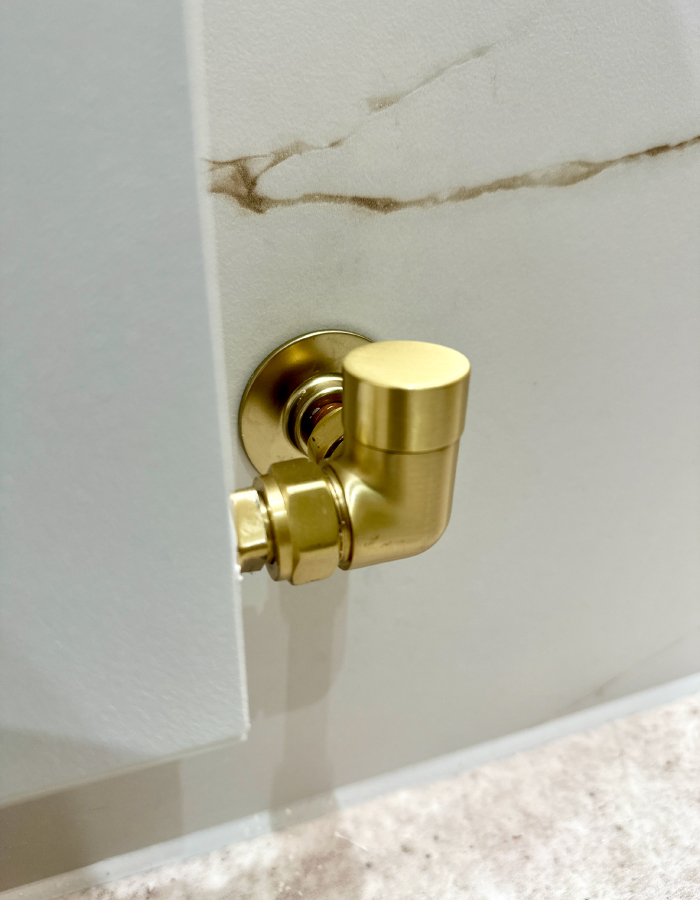

Thermostatic valves, with all pipework chased into the walls
Electrics and ventilation
Downlights and a pendant light in the small hallway
LED mirror and two double sockets
Mechanical extract fan
Smoke detector
Tested and certified
Tiling and finishes
Around 16 m² of wall tiling
Wood effect tiles to the shower walls
Marble effect tiles everywhere else
Brushed brass trim to the window reveal
LVT flooring
Plastering, coving and making good
Fittings and handover
1200 x 800 shower tray with brass framed glass panels

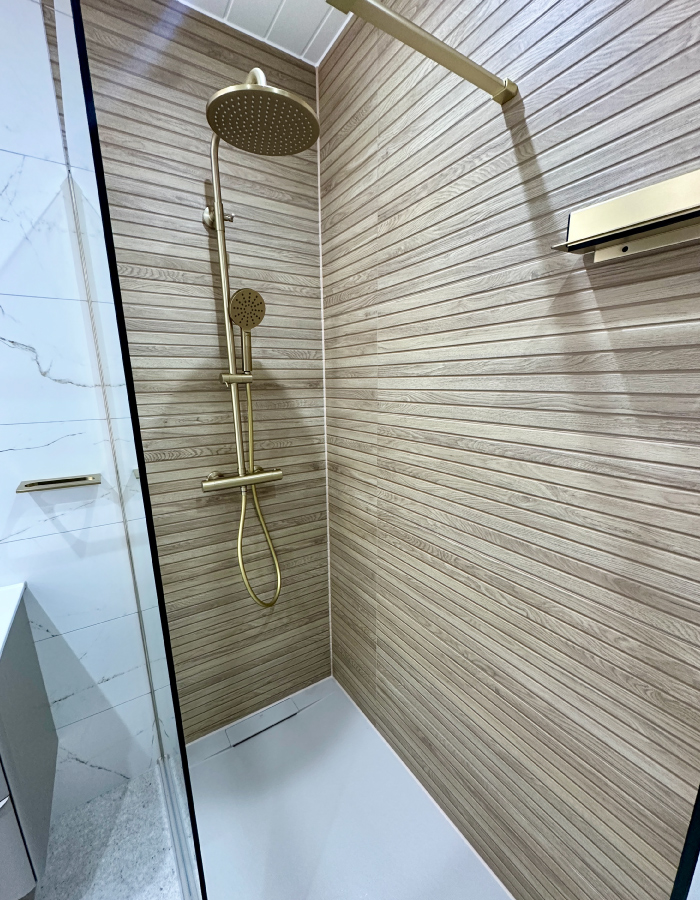

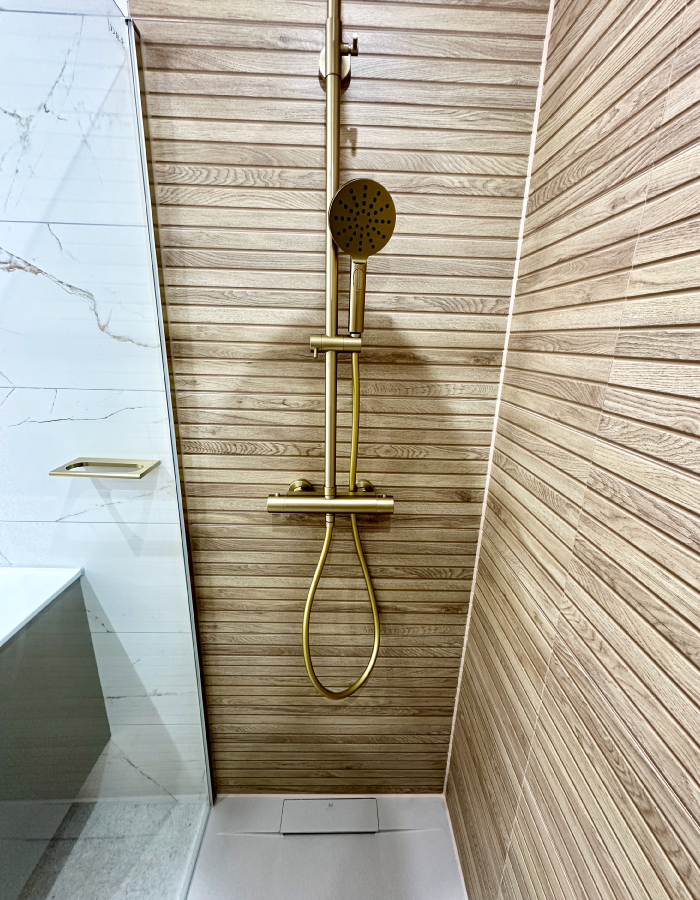

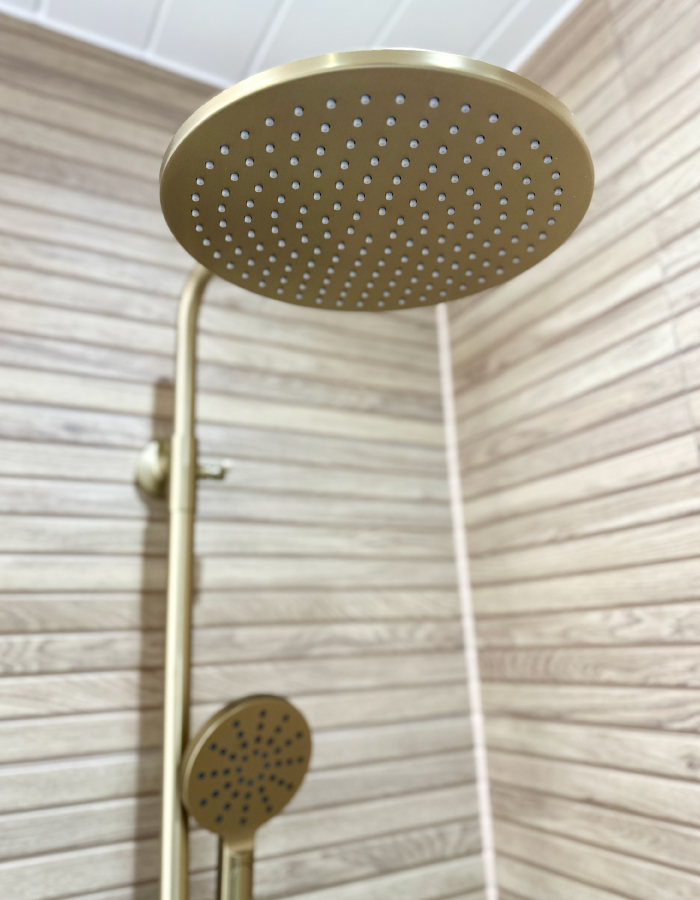

Exposed thermostatic shower in brushed brass

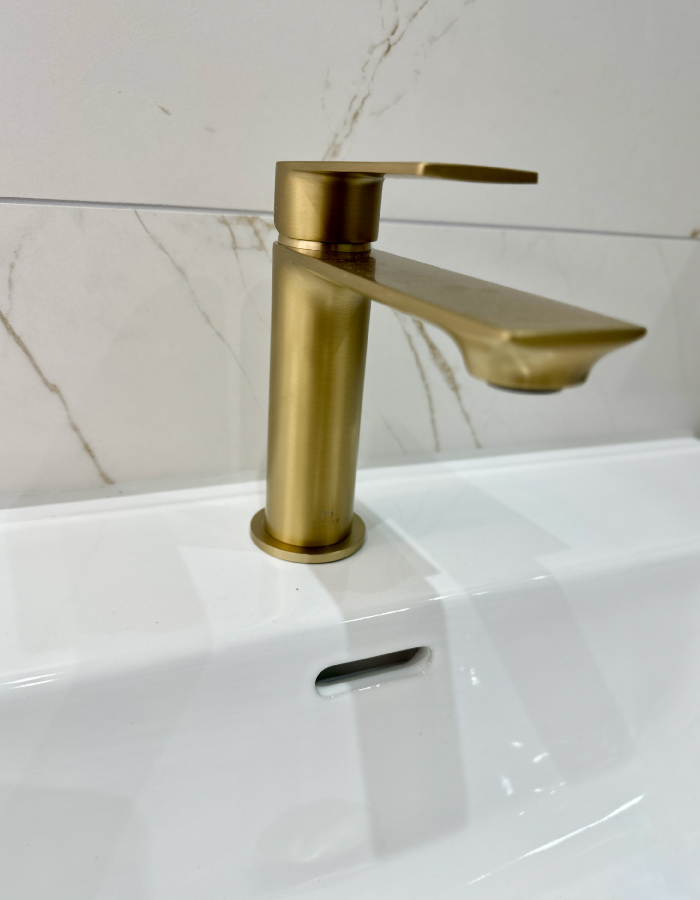

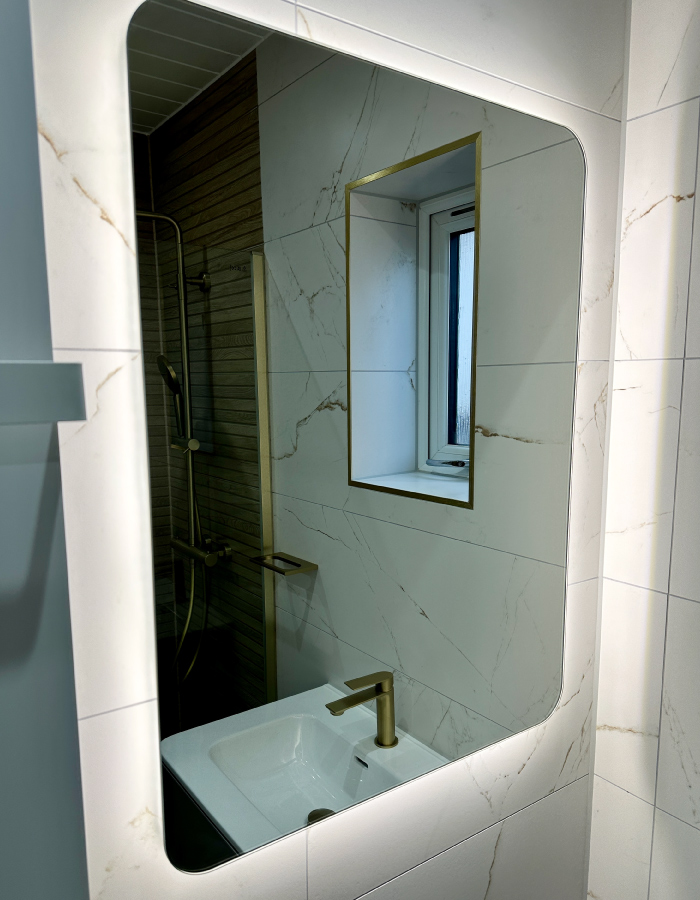

Wall hung vanity unit, brass basin mixer and brass framed LED mirror

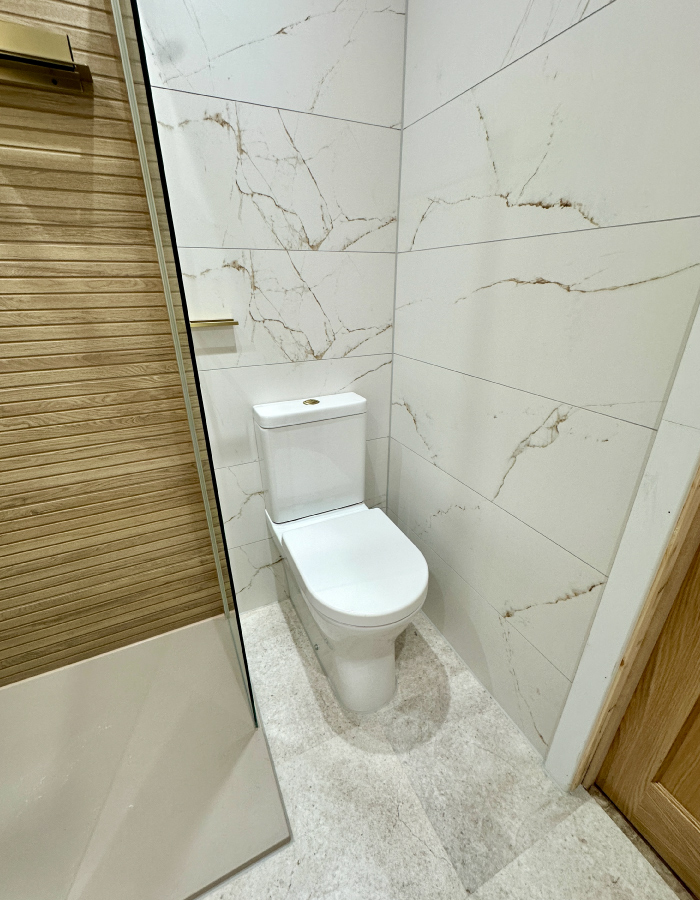

Comfort height WC with soft close seat
Building warrant completion paperwork
Stage by stage
How this shower room came together
From strip out in early November 2025 to the finished shower room at the end of the month, about four weeks on site.
Early November 2025
01Early November 2025

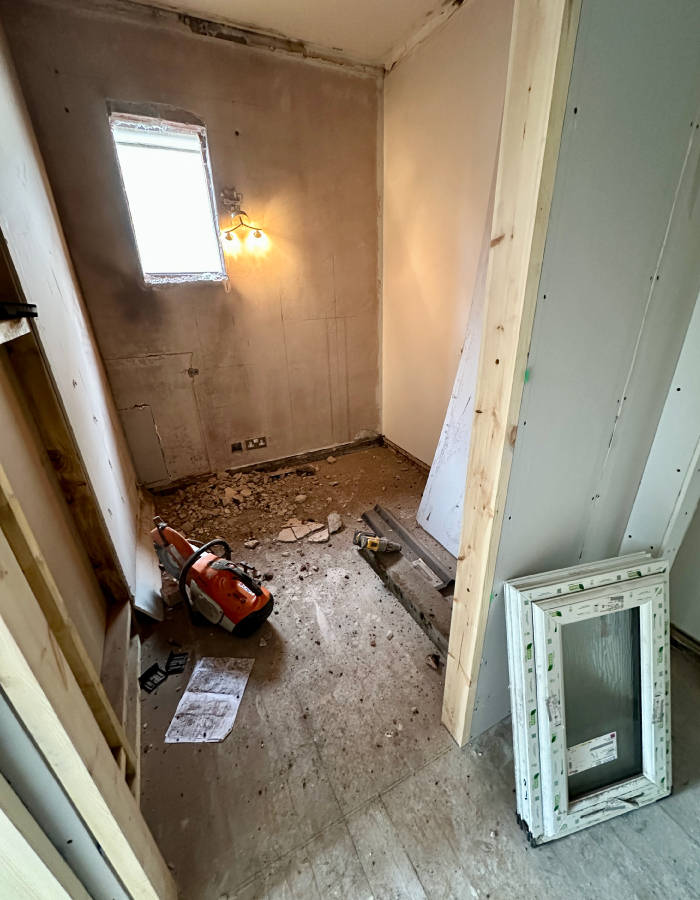

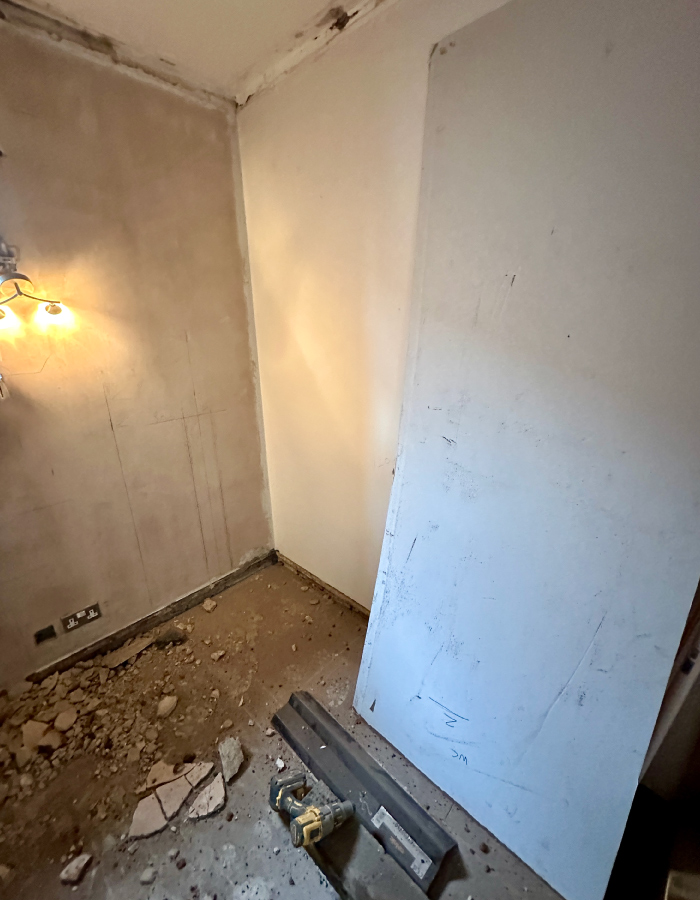

Strip out
The fireplace came out, the old door frame was removed and the room was stripped back ready for the new layout.
7 November 2025
027 November 2025

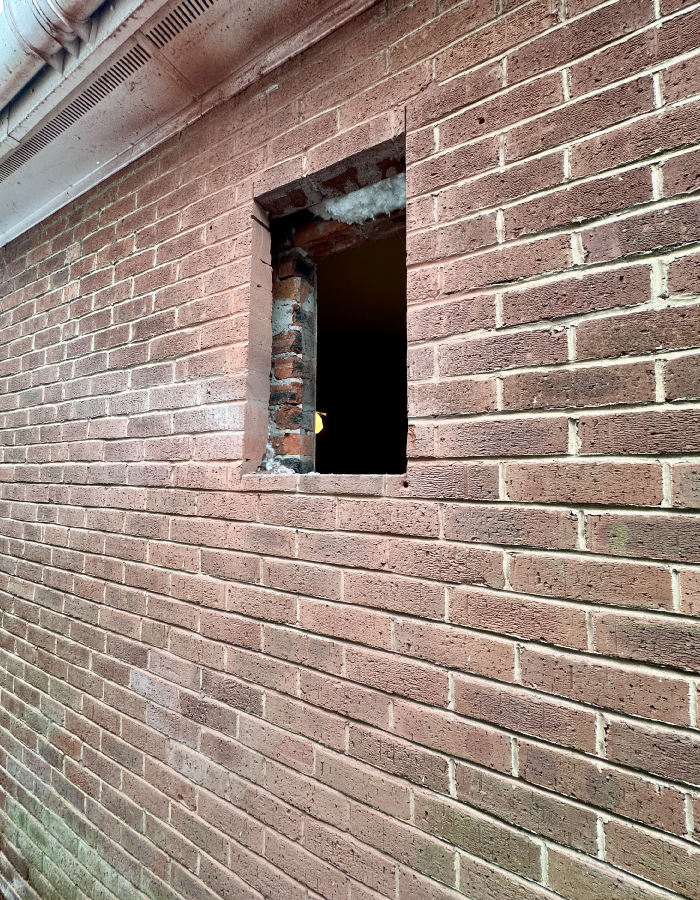

A new window in the gable

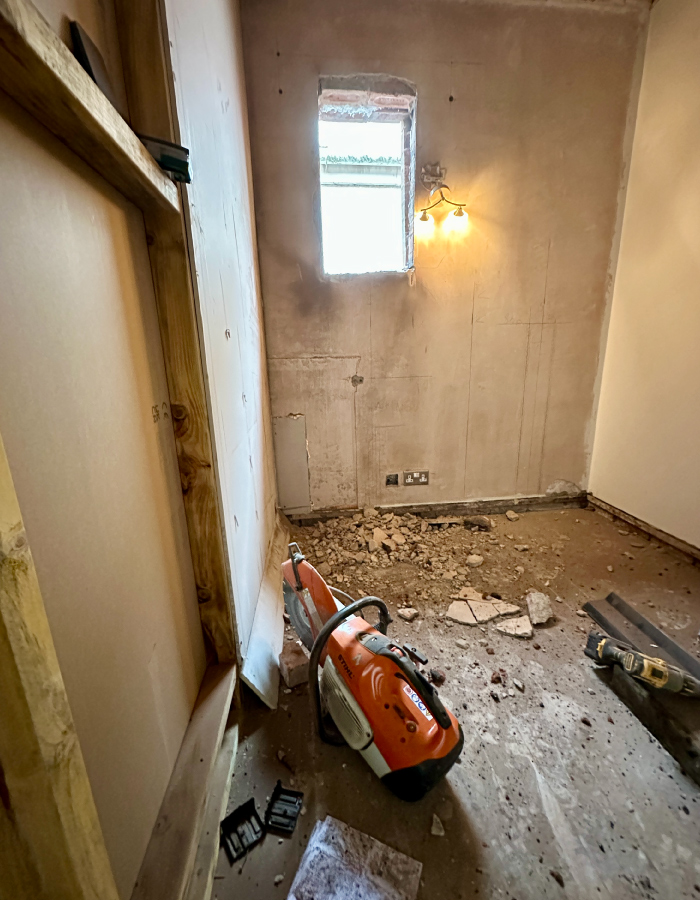

A new opening was cut in the brick gable wall and new lintels went in, giving the shower room its own natural light and ventilation.
10 November 2025
0310 November 2025

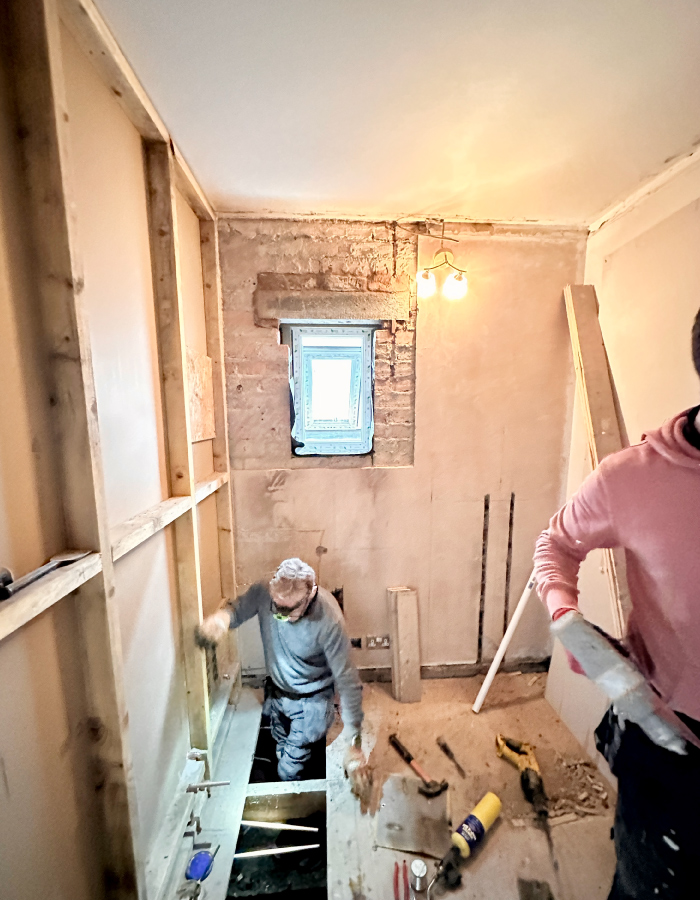

Partition, drainage and first fix

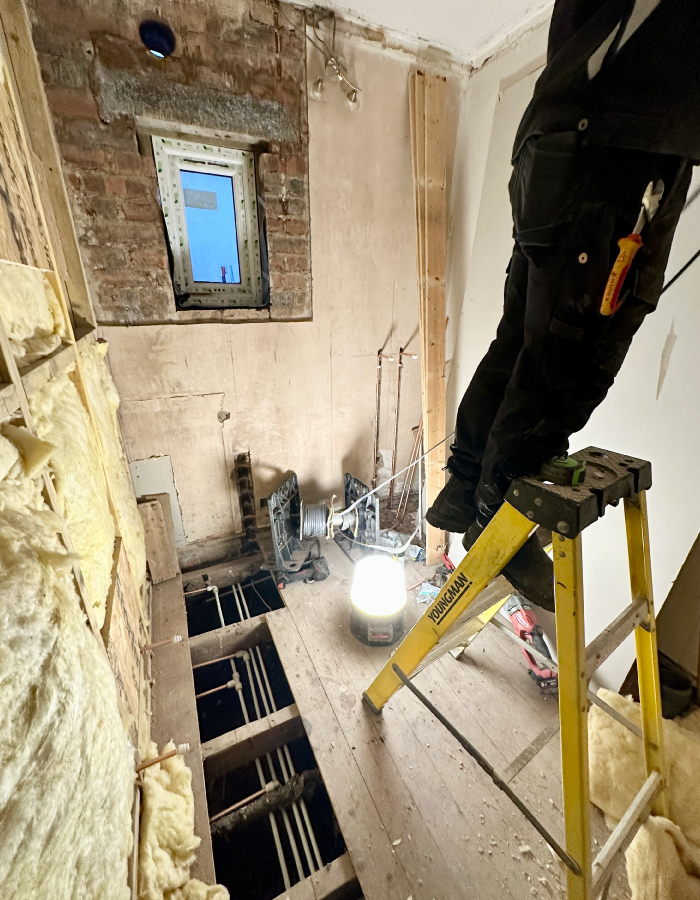

The floor was lifted so the new 100mm waste could run underneath to the existing soil drainage. The stud partition was insulated for sound and the plumbing and electrics were first fixed.
12 to 14 November 2025
0412 to 14 November 2025

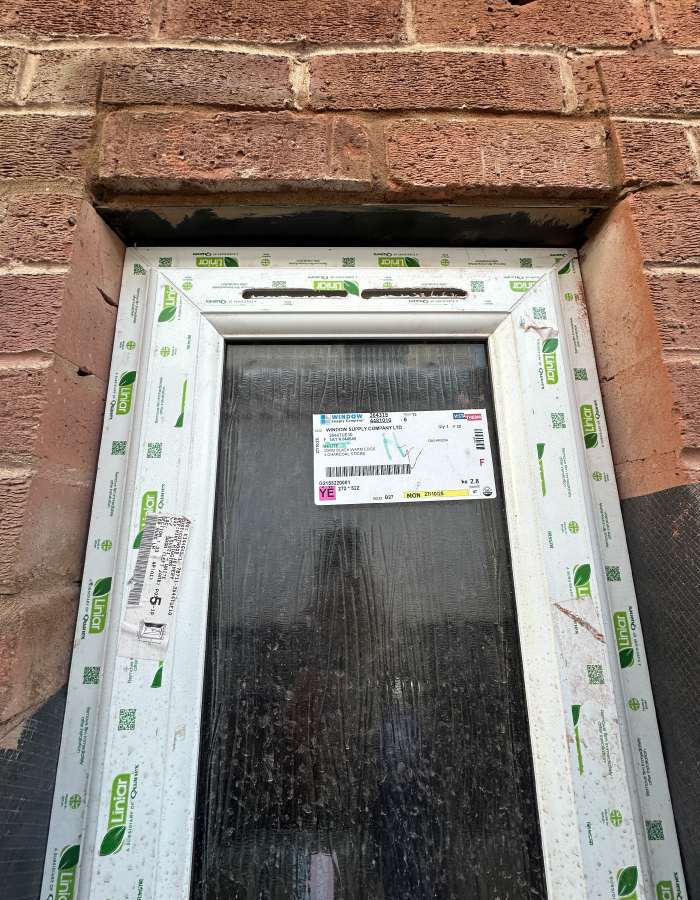

Window fitted

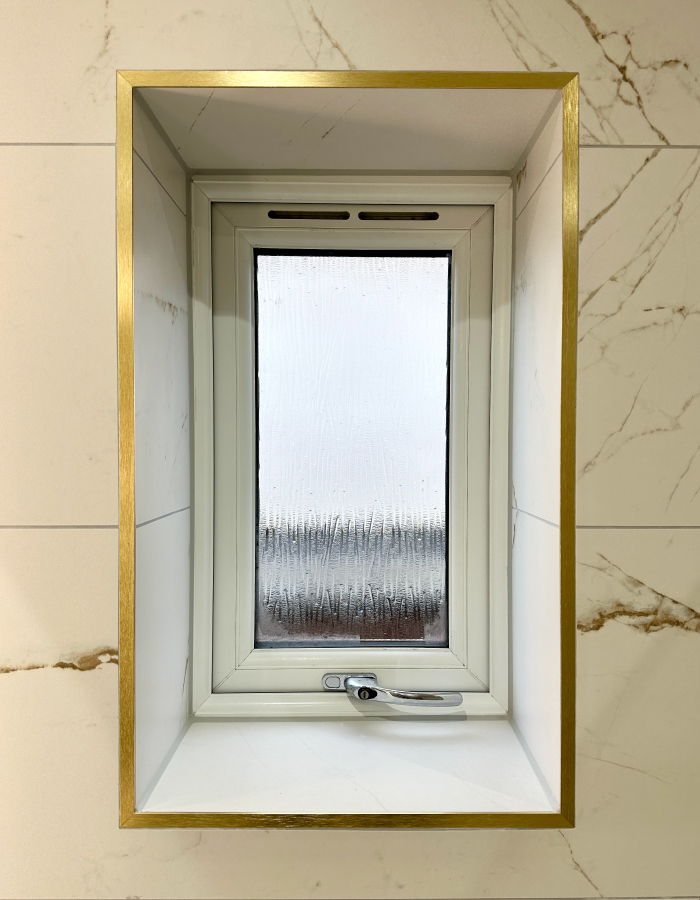

The frosted double glazed window was fitted with a top hopper and trickle vent, and the brickwork was made good around it.
15 November 2025
0515 November 2025

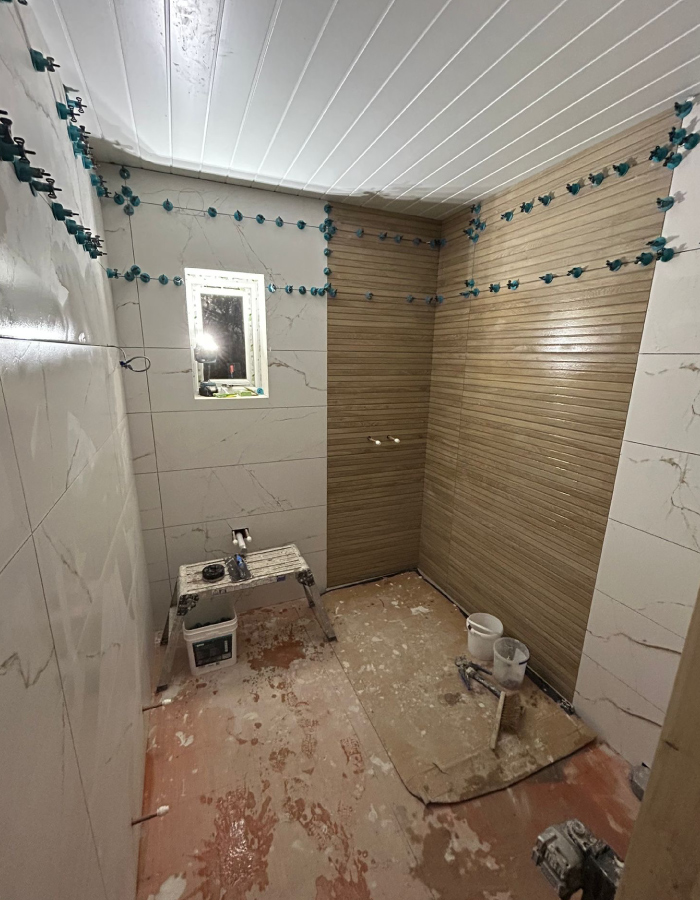

Ceiling and tiling
The PVC ceiling went up on battens, then the large format marble effect tiles and wood effect shower tiles were laid with levelling clips for flat, tight joints.
Late November 2025
06Late November 2025
The finished shower room
The shower, glass panels, vanity, LED mirror, WC, radiators and oak doors went in, followed by testing, the electrical certificate and the completion paperwork for the building warrant.
Gallery
Project photos
Before and after
Same room. A new shower room.
Drag the slider to see the room in the first week, stripped back with the new window opening cut, and the finished shower room.
BeforeAfter
In their words
What the clients said
★★★★★
Excellent project from start to finish. Cutwood’s attention to detail is fantastic. The joiner, Graeme, and plumber, Robbie, couldn’t have been more helpful in their advice and the craftsmanship shown by the entire team was first class. Cutwood’s work ethic is great. Sticking to the task until is properly finished. Delighted with the work.
